How to Replace Dyson V11 Battery at Home (Click-In and Screw-In)

Signs Your Dyson V11 Battery Needs Replacing

Many owners searching for replace Dyson V11 battery solutions find this step crucial. Before you order a replacement, confirm that the battery is actually the problem. Here are the most common symptoms of a failing Dyson V11 battery:

• Drastically reduced run time. A healthy V11 battery delivers up to 60 minutes in Eco mode. If you are getting 10 minutes or less, the cells have degraded.
• The vacuum cuts out suddenly. The V11 shuts off mid-use even though the LCD screen showed remaining charge moments earlier.
• Flashing blue light or battery icon error. The LCD screen displays a solid or flashing battery symbol, indicating a fault the vacuum cannot recover from.
• The vacuum will not turn on at all. After confirming the charger works (the LED on the wall dock lights up), a completely unresponsive unit usually points to a dead battery pack.
• Excessive heat during charging. If the battery feels unusually hot on the dock, the cells may be failing internally.

If you are experiencing one or more of these issues, a fresh battery will almost certainly solve the problem. Replacing the battery is far more cost-effective than buying a new vacuum or sending it in for repair.

Which V11 Battery Type Do You Have? (Click-In vs. Screw-In)

Getting the right replace Dyson V11 battery guidance can save you time and money. This is the most important step before you order a replacement. Dyson produced the V11 in two distinct body styles, and each uses a different battery attachment method. Installing the wrong type will not work.

Click-In Battery (Newer V11 Models)

Found on the Dyson V11 Outsize, V11 Detect, and later-production V11 Animal/Torque Drive units. The battery has a red release button and snaps into the handle body with an audible click. No screws are involved. You can identify this type by looking at the bottom of the handle — if you see a red latch or slider button, you have the click-in style.

Screw-In Battery (Older V11 SV14 Models)

Found on the original V11 Absolute, V11 Animal, and V11 Torque Drive units with model number SV14. The battery is secured with three Phillips-head screws and does not have a visible release button. Check your model number on the label inside the battery compartment or on the original box. If it reads SV14, you almost certainly have the screw-in type.

Not sure which you have? Remove your current battery using the instructions below. If it slides out with a button press, it is click-in. If you see screws, it is screw-in. You can also check the label on your existing battery pack for the part number.

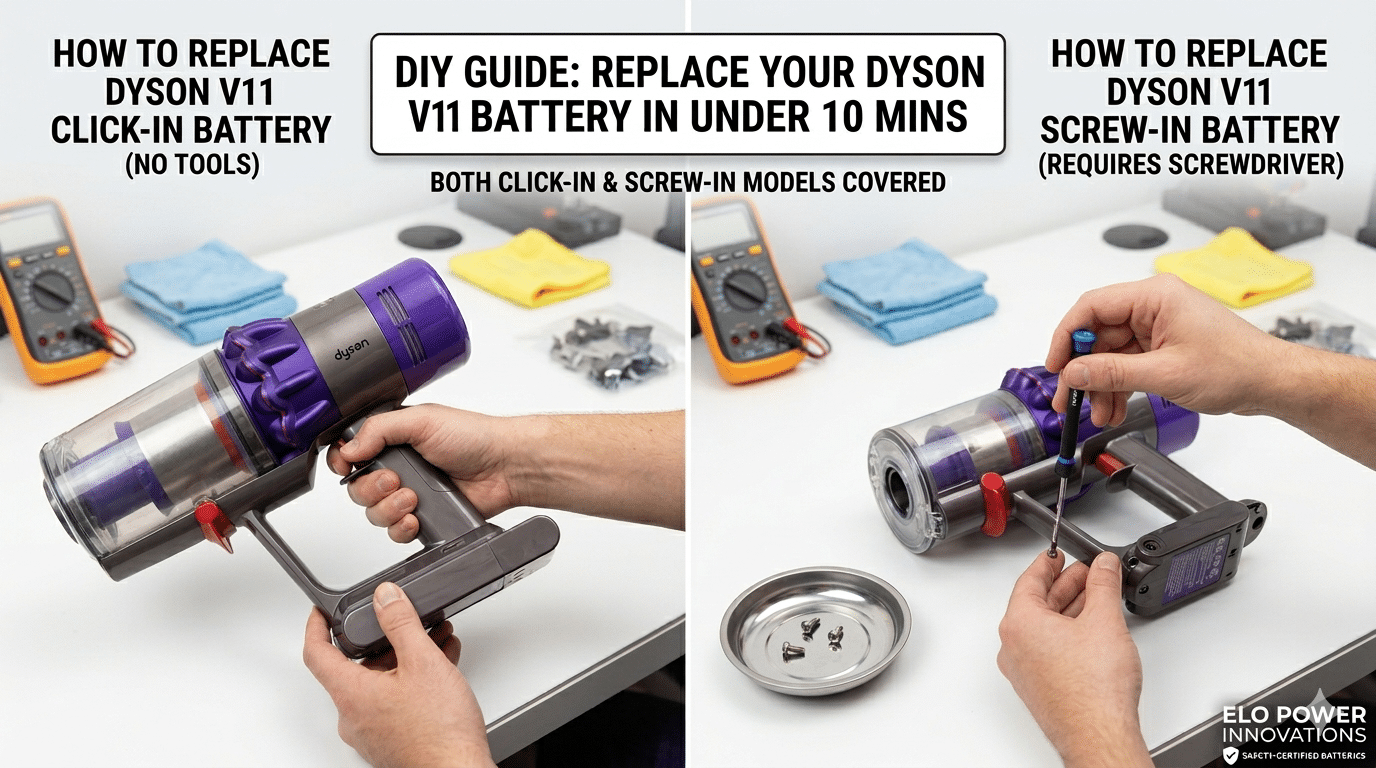

How to Replace a Dyson V11 Click-In Battery (Step by Step)

For anyone dealing with a replace Dyson V11 battery question, here is what to know. This process takes about two minutes and requires no tools at all.

1. Power off and unplug. Remove the vacuum from the charging dock. Make sure it is turned off.
2. Remove any attachments. Detach the wand and cleaner head so you are working with just the main body and handle.
3. Locate the red release button. On the underside of the handle, near where the battery meets the body, you will find a red button or sliding latch.
4. Press and hold the release button. While holding the button, firmly slide the battery pack downward and away from the handle. It should disengage smoothly.
5. Align the new battery. Position your replacement battery so the electrical contacts and guide rails line up with the slots on the handle body.
6. Slide the battery in until it clicks. Push the battery firmly upward into the handle. You will hear and feel a distinct click when it locks into place.
7. Test the connection. Place the vacuum on the charging dock. The LCD screen should illuminate, confirming the new battery is recognized. Allow it to fully charge before first use (approximately 4.5 hours).

That is all there is to it. No screws, no wiring, and no risk of damaging the vacuum body.

Need a click-in V11 battery? Browse ELO’s V11 click-in replacement batteries — safety-certified, 5000mAh capacity, 1-year warranty.

How to Replace a Dyson V11 Screw-In Battery (SV14 Step by Step)

Understanding your replace Dyson V11 battery options helps you make the right choice. This process takes about five to eight minutes. You will need a Phillips-head screwdriver (size #2 works well).

1. Power off and unplug. Remove the vacuum from the charging dock and make sure it is completely powered down.
2. Remove attachments. Detach the wand and cleaner head for easier handling.
3. Locate the three screws. Turn the handle so you can see the underside where the battery meets the main body. You will find three Phillips-head screws arranged in a triangular pattern.
4. Remove all three screws. Use your Phillips screwdriver to turn each screw counterclockwise. Set them aside somewhere safe — they are small and easy to lose. A magnetic tray or a small bowl works well.
5. Slide the old battery out. With the screws removed, gently pull the battery pack away from the handle. It should slide off the guide rails without much resistance. If it feels stuck, wiggle it slightly side to side while pulling.
6. Inspect the contacts. Before installing the new battery, take a moment to check the electrical contacts on the vacuum body. If you see dust or light corrosion, wipe them clean with a dry cloth.
7. Slide the new battery into place. Align the replacement battery with the guide rails on the handle and push it firmly into position. The screw holes on the battery should line up perfectly with the holes on the body.
8. Reinstall the three screws. Thread each screw in by hand first to avoid cross-threading, then tighten with the screwdriver. Snug is sufficient — do not overtighten, as the housing is plastic.
9. Test the connection. Place the vacuum on the charging dock. The LCD screen should power on and display the battery status. Charge fully before first use (approximately 4.5 hours).

If the screen does not turn on after installing the new battery, remove it and reseat it. Make sure the contacts are clean and the battery is pushed all the way in before tightening the screws.

Need a screw-in V11 battery? Browse ELO’s V11 screw-in replacement batteries — includes screws and filters kit, UL certified.

Tips for Getting the Most Out of Your New V11 Battery

When it comes to replace Dyson V11 battery, understanding the details matters. Once you replace your Dyson V11 battery, a few simple habits will help the new pack last as long as possible:

• Charge fully before first use. Let the new battery reach 100% on its initial charge. This helps calibrate the battery management system and the run-time estimate on the LCD screen.
• Avoid leaving it on the charger indefinitely. Modern lithium-ion batteries handle overcharge well, but storing the vacuum off the dock when not in use for extended periods (a week or more) is better for long-term cell health.
• Use Eco mode when possible. The V11’s Eco mode draws less current, which reduces heat and stress on the cells. Save Boost mode for deep-cleaning carpets and high-traffic areas.
• Store in a cool, dry place. Extreme heat accelerates battery degradation. Avoid leaving the vacuum in a hot garage, direct sunlight, or near heating vents.
• Clean filters regularly. A clogged filter forces the motor to work harder, pulling more current from the battery and shortening its effective life span. Dyson recommends washing the filter monthly.
• Run the battery down occasionally. Once a month, let the vacuum run until it powers off on its own. This helps the battery management system maintain an accurate charge reading.

Choosing a Safe Replacement Battery

Many owners searching for replace Dyson V11 battery solutions find this step crucial. Not all aftermarket batteries are created equal. When you replace your Dyson V11 battery, look for these qualities in a replacement:

• Safety certifications. UL, CE, or FCC certification means the battery has been independently tested for safety. ELO Power Innovations batteries carry these certifications as standard.
• Matched or higher capacity. The original V11 battery is rated at 4,000 mAh (25.2V). A quality replacement should meet or exceed that capacity to deliver the same run time you expect.
• Warranty coverage. A manufacturer that stands behind their product with a warranty is one that trusts the quality of their cells. ELO batteries come with a full 1-year warranty.
• Built-in protection circuits. Look for batteries with overcharge, over-discharge, and short-circuit protection. These safeguards prevent damage to both the battery and your vacuum.

If you also own other Dyson models, ELO offers compatible replacement batteries across the full cordless range, including the V10 and V15 series. All ship free within the continental US.

Frequently Asked Questions

Get Your Dyson V11 Running Like New

Whether you have the click-in or screw-in model, replacing your Dyson V11 battery is one of the simplest home maintenance tasks you can do. With the right battery installed, your vacuum will deliver the same powerful suction and long run times it had when it was brand new.

ELO Power Innovations offers safety-certified, high-capacity replacement batteries for the Dyson V11 and the full V6 through V15 cordless range. Every battery ships free and is backed by a 1-year warranty. Browse our full collection of Dyson replacement batteries and find the right fit for your model.
