ELO Dyson V11 Screw-in Replacement Battery 5000mAh for Animal, Absolute, Pro, Torque Drive, SV14, 25.2V, UL Certified, 95min ECO, Part 970145-06, 2 Filters + Clip + Screws

Name: ELO 5,000 mAh Screw-in Battery for Dyson V11 Animal, Absolute & Torque Drive
Brand: ELO Power Innovations
SKU: HY-265P-G4ZA
Price: 101.99 USD
Availability: InStock
Rating: 5 (1 reviews)

Description

ELO 5,000 mAh Screw-in Replacement Battery for Dyson V11 SV14

Upgrade your Dyson V11 SV14 with a high-capacity 5,000 mAh lithium-ion battery that delivers up to 95 minutes in Eco mode, 56 in Auto, and 16 in Boost — longer in every suction mode than Dyson’s original 3,600 mAh OEM battery. Part number 970145-06.

Compatible with: V11 Animal, V11 Absolute, V11 Absolute Pro, V11 Torque Drive, and the SV14 screw-in chassis.

Not compatible with: the V11 click-in models (SV15, SV16, SV22 / part 970425-01), V11/V15 Outsize click-in (970938-01), V6, V7, V8, V10, or any other Dyson model — confirm your part number before ordering.

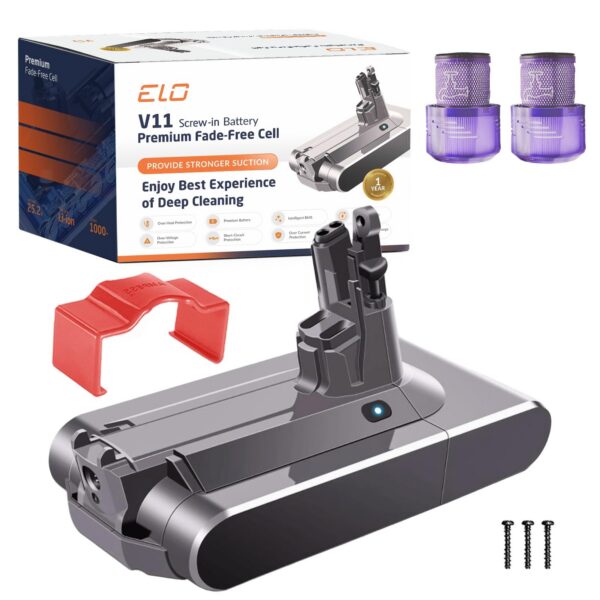

Built with UL-certified 25.2 V cells and a 5-layer Battery Management System that protects against overcharging, over-discharging, overheating, short circuits, and cell imbalance. Works with your existing Dyson V11 charger and wall dock — no new charger needed. Box includes the battery, two replacement filters, mounting clip, and screws.

Backed by a 1-year warranty and 30-day hassle-free refund, shipped free from our US warehouse.

Additional information

Runtime (ECO)	95 min
Runtime (Normal)	56 min
Runtime (MAX)	16 min
Fits These Models	V11 Animal, V11 Absolute, V11 Absolute Pro, V11 Torque Drive, SV14
Whats In The Box	1x battery, 2x filters, 1x clip, screws
Part Number	970145-06
OEM Runtime (ECO)	60 min
pa_capacity

Amazon Customer Reviews

5.0

★★★★★

1 Amazon review

5 star1

4 star0

3 star0

2 star0

1 star0

★★★★★ Verified Purchase

Juan Rojas · November 2, 2025

Excellent so far

Reviews

There are no reviews yet.

Be the first to review “ELO 5,000 mAh Screw-in Battery for Dyson V11 Animal, Absolute & Torque Drive”

Longer runs in every mode. About half the price.

	Dyson OEM	ELO
Battery capacity	3,600 mAh
Voltage	25.2 V	21.6 V
Runtime (Powerful mode)*	35 min	56 min
Runtime (MAX mode)	10 min	16 min
Warranty	1 year	1 year
Price	$199.99	$101.99

Dyson OEM

ELO

Battery capacity

3,600 mAh

Voltage

25.2 V

21.6 V

Runtime (Powerful mode)*

35 min

56 min

Runtime (MAX mode)

10 min

16 min

Warranty

1 year

Price

$199.99

$101.99

* With motorised head. Source: dyson.com · part 970145-06 · retrieved 2026-04-14

What you get with ELO

8,000 mAh High-Capacity

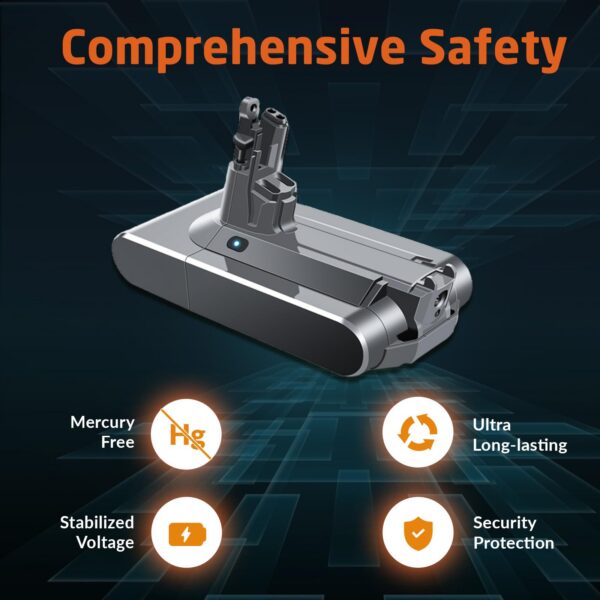

5-Layer Safety Protection

Safety Certified (FCC / RoHS / CE)

Everything in the Box

Uses Your Original Charger

How to install — 3 simple steps

Step 1

Unscrew the old battery

On the side of the V11 main body (SV14 chassis), locate the 2 screws holding the battery in place. Remove them with a small Phillips screwdriver, then slide the old Dyson battery off.

Step 2

Attach the ELO battery

Line up the new ELO battery against the side of the V11, slide it forward until flush, then reinstall both screws. Snug but not overtightened.

Step 3

Charge and go

Plug in your original Dyson V11 charger or seat the V11 in your wall dock. Full charge in about 4.5 hours.

Frequently asked

Will installing this void my Dyson warranty?

If your Dyson V11 SV14 is still under its original warranty, replace through Dyson — fitting an aftermarket battery voids Dyson's warranty. Most owners come to us when the original pack has degraded years past warranty. ELO gives you longer runtime in every mode at about half of Dyson's $199.99 price, backed by our own 1-year warranty.

Why is this so much cheaper than Dyson's OEM V11 SV14 battery?

We're a direct-to-consumer battery manufacturer using the same UL-certified Samsung-grade cells major electronics brands use. There's no Dyson brand markup and no retail middleman, plus a 5-layer BMS protection system that exceeds Dyson's stock circuit.

How long does it actually last?

On a single charge: 95 min in Eco (vs. Dyson's 60), 56 min in Auto/Mid (vs. Dyson's 30-40), and 16 min in MAX/Boost (vs. Dyson's 5-15 min). Particularly noticeable in MAX — pet hair on carpet without watching the gauge drop.

Will it work with my original Dyson V11 SV14 charger and dock?

Yes. The ELO V11 screw-in battery matches the 25.2V charge profile of Dyson's original V11 charger. Drop the V11 into your existing wall dock — full charge in about 4.5 hours, no new dock needed.

Does this fit the V11 click-in models or the V15?

This is the V11 screw-in battery (Dyson part 970145-06) for SV14 chassis only — V11 Animal, Absolute, Pro, and Torque Drive variants that mount via screws. It does NOT fit the V11 click-in models (SV15/16/22) or the V15 — those use a tool-free click-in housing (we sell click-in versions separately).

ELO 5,000 mAh Screw-in Battery for Dyson V11 Animal, Absolute & Torque Drive
